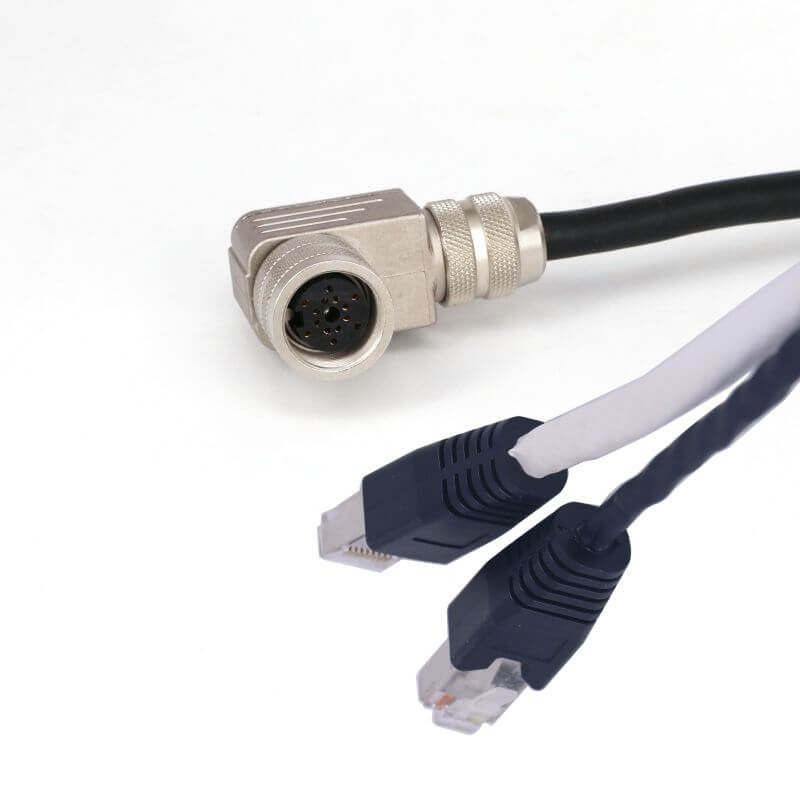

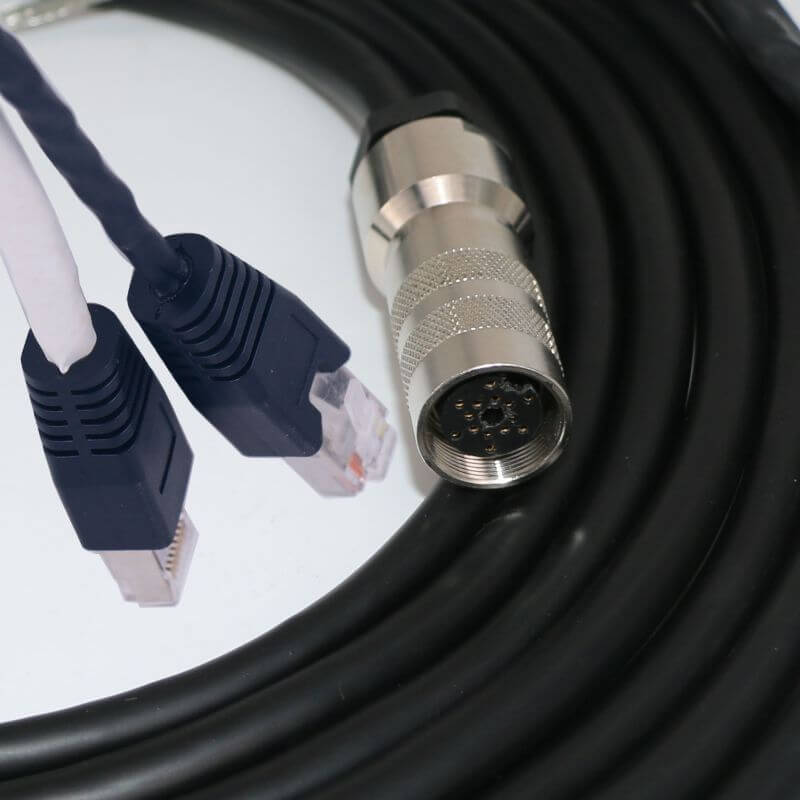

LMI Gocator Sensor Power & Ethernet Cordset
Overview
The LMI Gocator Power & Ethernet Cordset connects Gocator smart sensors for reliable power and high-speed data communication.
This M16 14-pin female cordset supports dual RJ45 or open-wire configurations, enabling 1000 Mbit/s Ethernet with power delivery.
Specifications
| Specification | Detail |
|---|---|
| Connector Type | M16 14-pin Female, metal shell or injection molding plastic shell |
| Cable Ends | 2x RJ45 or 1x open wire |
| Material | PVC black |
| Connection Type | Power + Ethernet |
| Data Rate | 1000 Mbit/s |
| Voltage | 24–48 VDC |
| Length Options | 2 m – 25 m |
| Rating | IP67 (when connected) |
| Flex Option | Standard or High Flex |
Key Features
- Supports high-speed Gigabit Ethernet for sensor data.
- Dual function for power and data transmission.
- Available in standard or high-flex cable types.
- Rugged PVC jacket ensures industrial protection.
- Compatible with Gocator 1100–5500 series sensors.
Applications
- 3D inspection sensors and laser profilers
- Factory automation systems
- Vision-guided robotics
- Multi-sensor Ethernet networks
