LMI Gocator Sensor I/O Cordset
Overview

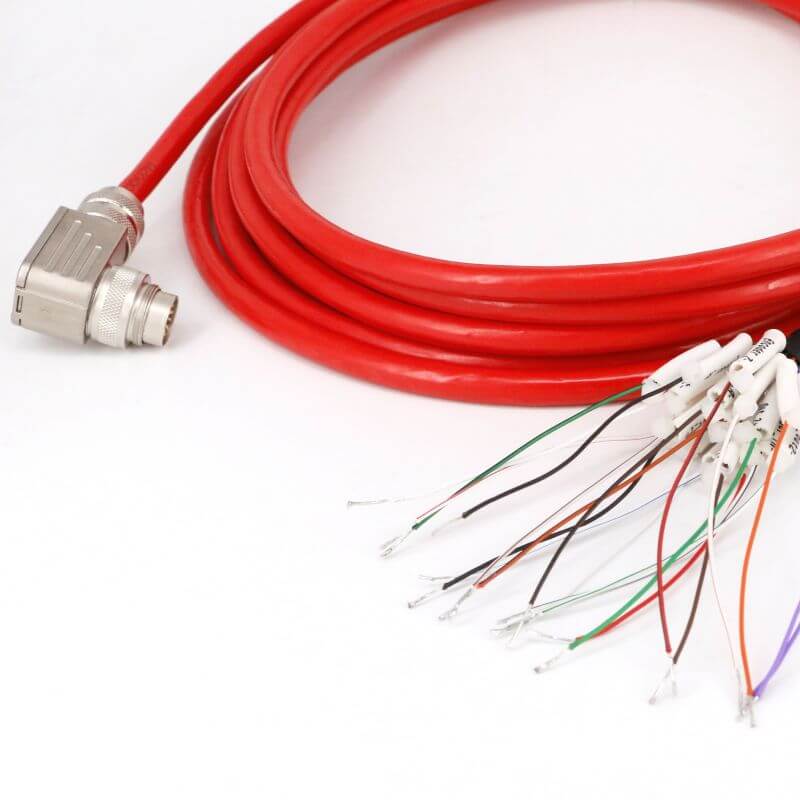

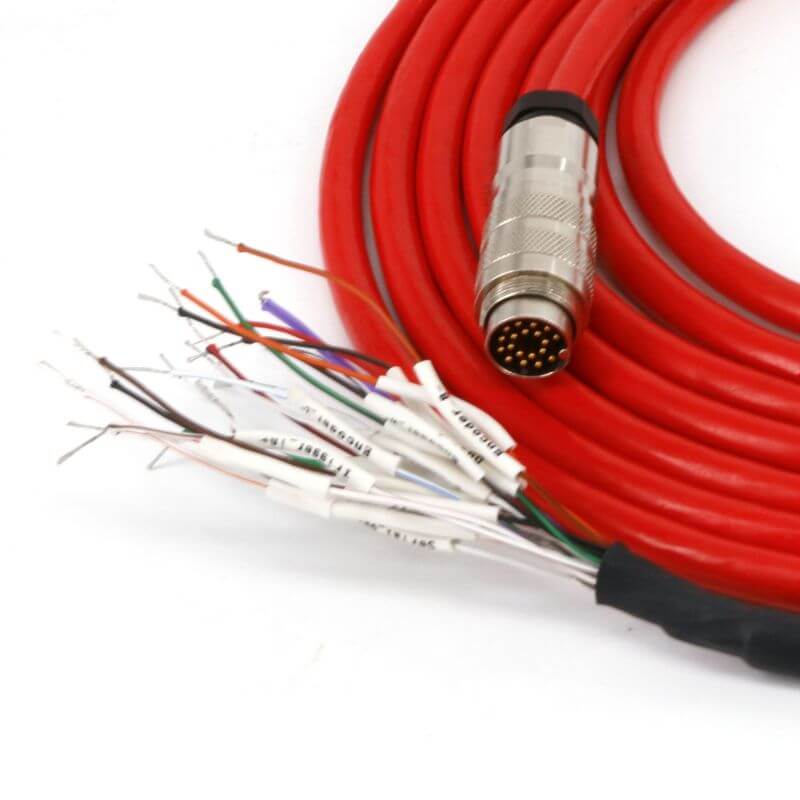

The LMI Gocator I/O Cordset provides digital I/O, encoder input, serial communication, and analog output for Gocator smart sensors. Built with a robust M16 19-pin male connector, this cable ensures a reliable connection in industrial applications.
Specifications
| Specification | Detail |
|---|---|
| Connector Type | M16 19-pin Male |
| Cable End | Open wire |
| Interface | Digital I/O, Encoder, Analog, and Serial outputs |
| Voltage Range | 24–48 VDC |
| Maximum Data Rate | 1 MHz |
| Length Options | 5 m, 10 m, 25 m, 60 m |
| Material | PVC, Black |
| Rating | IP67 when connected |
| Bend Radius | 124 mm (standard) or 40 mm (high-flex) |
Key Features
- Supports encoder, analog, and digital outputs for complete sensor control.
- Available in standard and high-flex versions for static or moving setups.
- Rated IP67 for use in wet or dusty production environments.
- Backed by LMI’s trusted industrial-grade durability.
Applications
- Automated inspection and measurement systems
- Conveyor-based encoder synchronization
- Factory automation and smart manufacturing
- Multi-sensor data integration networks
