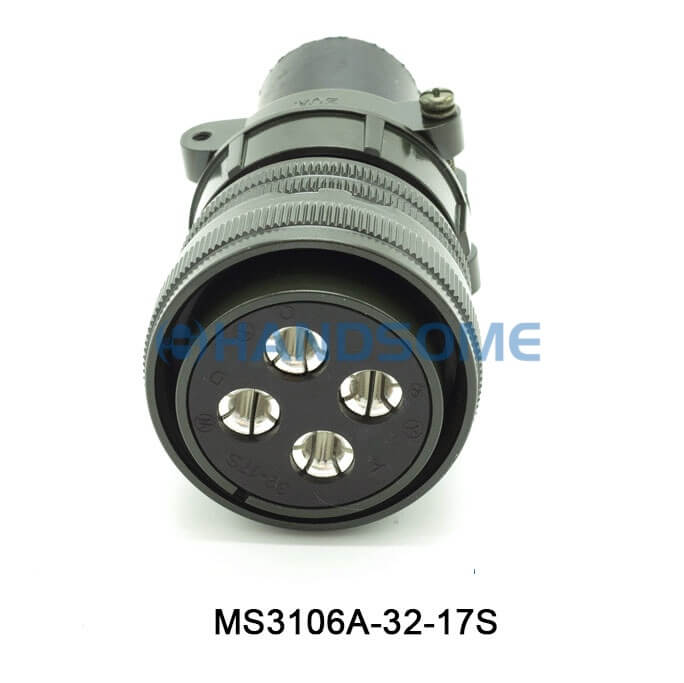

The MS5015 Circular Connector is a rugged, military-grade interconnect solution designed for demanding environments. Compliant with both MIL-DTL-5015 and legacy MIL-C-5015 standards, this connector is trusted in military applications, industrial automation, transportation, and aerospace systems.
Available in a variety of shell sizes and insert configurations, our MS5015 circular connectors for military applications are built to ensure secure and reliable power or signal transfer under extreme conditions. These connectors feature solder contacts and are available in cable mount, panel mount, and box mount styles, with optional strain relief and backshells.
Whether for a harsh outdoor environment, or indoor industrial use, our waterproof MIL-DTL-5015 connectors offer dependable performance with IP67 sealing, anti-corrosion housing, and vibration resistance.
📐 Product Specifications
| Specification | Details |
|---|---|
| Standard | MIL-DTL-5015 / MIL-C-5015 |
| Contact Type | Solder Contacts |
| Contact Arrangements | 2-pin to 37-pin options |
| Mounting Style | Cable Mount, Box Mount, Panel Mount |
| Coupling Mechanism | Threaded Coupling |
| Operating Voltage | Up to 1500V AC/DC (depending on size) |
| Current Rating | Up to 150A (depends on contact size) |
| Shell Material | Aluminum Alloy with Cadmium or Zinc Finish |
| Environmental Protection | IP67 Waterproof Rating |
| Temperature Range | -55°C to +125°C |
| Strain Relief | Available with Backshell Accessories |
⭐ Key Features
- Meets MIL-DTL-5015 and MIL-C-5015 specifications for proven military and industrial reliability
- Solder contact termination for secure and vibration-resistant wiring
- Threaded coupling design for stable electrical connections
- Cable mount connectors with strain relief options available
- Waterproof sealing (up to IP67) for outdoor and harsh environmental conditions
- High current and voltage capacity for demanding electrical loads
- Multiple shell sizes and insert configurations available
- Compatible with both OEM and aftermarket MIL spec applications
🛠️ Applications
Our MIL spec 5015 connector for harsh environments is used widely in:
- Military communication systems
- Industrial automation equipment
- Transportation and railway control systems
- Aerospace and avionics
- Heavy machinery and construction equipment
- Robotics and control panels
- Maritime and offshore power systems
❓ Frequently Asked Questions (FAQs)
Q1: Are these MS5015 connectors interchangeable with MIL-C-5015 parts?
A: Yes. Our connectors are designed according to MIL-DTL-5015 which supersedes MIL-C-5015, ensuring full backward compatibility.
Q2: Do your MS5015 connectors come with strain relief options?
A: Absolutely. We offer MIL-C-5015 cable mount connectors with strain relief to enhance cable durability and performance in rugged conditions.
Q3: What type of contacts do your MIL-DTL-5015 connectors use?
A: All our connectors use solder contacts, ensuring a solid and vibration-resistant connection.
Q4: Can these connectors be used in outdoor applications?
A: Yes, our waterproof MIL-DTL-5015 connectors meet IP67 standards, making them ideal for outdoor or marine use.
Q5: Are these connectors suitable for industrial environments?
A: Definitely. We supply MS5015 connectors for industrial use, optimized for durability, current capacity, and environmental sealing.
